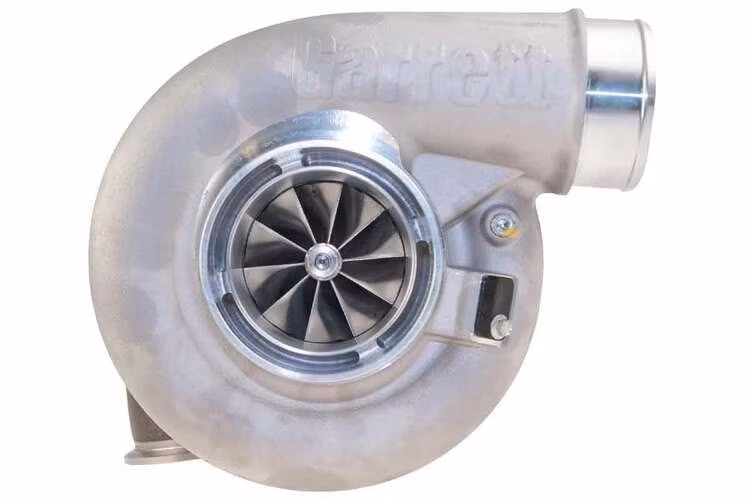

Garrett G42-1200 Compact Turbocharger 1.01 A/R V-Band 879779-5001S

Product information "Garrett G42-1200 Compact Turbocharger 1.01 A/R V-Band 879779-5001S"

Design type: Compact version with High Flow Compressor Housing and V-Band Turbine Inlet Flange
Horsepower: 475 - 1200 HP
Displacement: 2.0 - 7.0 L
V-Band Inlet - V-Band Outlet - Single Scroll - A/R 1.01

Honeywell Garrett G-Series - The newest and most advanced generation turbocharger!
These very small turbocharger achieve extremely high performance with minimum space requirements.

• Latest CFD-optimized, forged milled compressor wheel
• High-Flow compressor housing with integrated easy plug speed sensor port
• Rotation: Standard (Clockwise)
• Dual ceramic ball bearing cartridges
• Twin piston rings at compressor and turbine site
• Inconel 950°C turbine wheel
• 950°C Stainless Steel turbine housing
• Water- and Oil cooled
• External Wastegate
• Delivery: Turbocharger with Turbine Housing, 2 X -6AN water fittings
